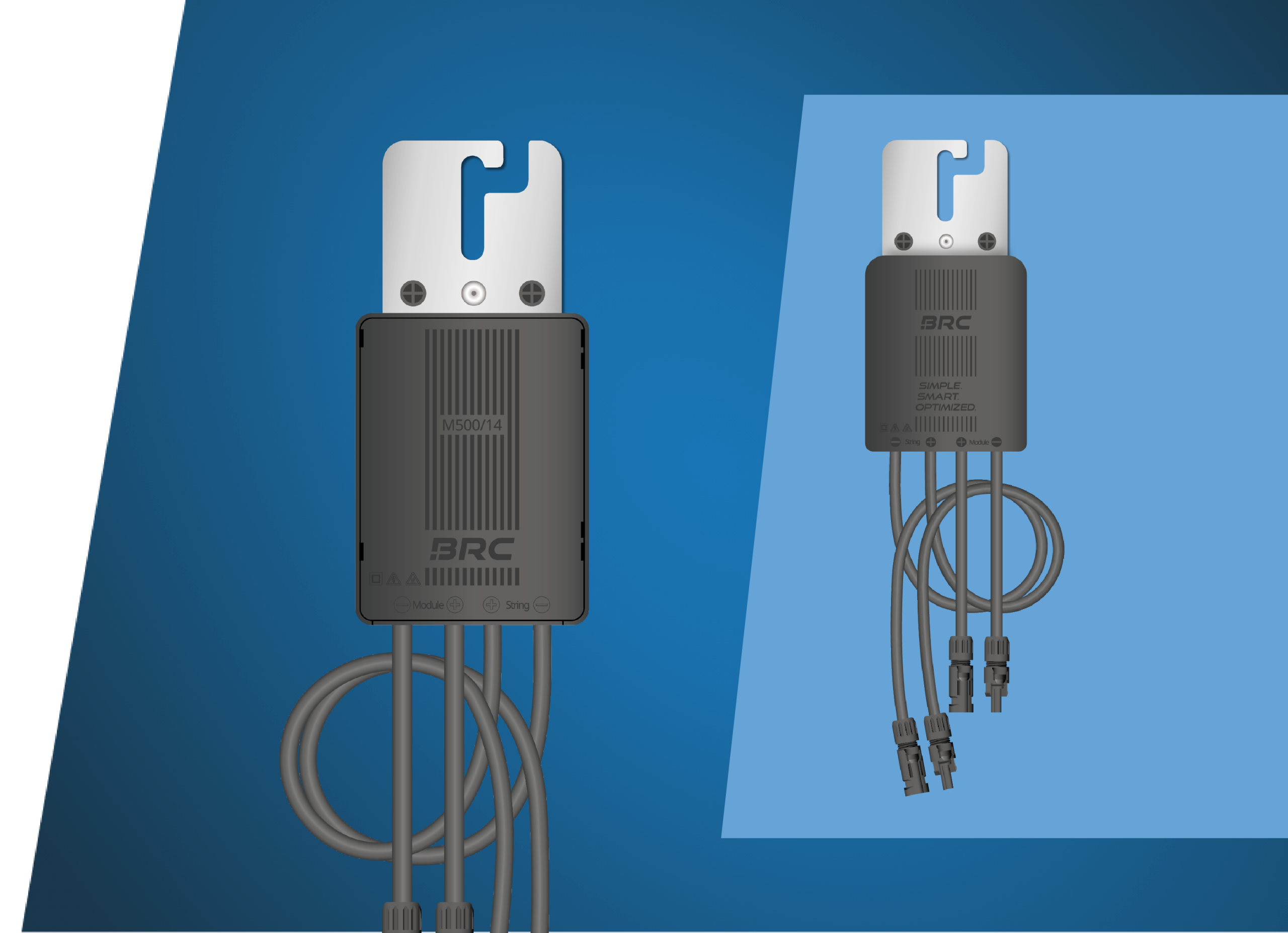

Whether shading, different orientation or different module inclination, modules with different irradiation reduce the yield of your overall system. With the BRC Optimizer M500/14, you get the maximum yield from these areas as well!
1. Shading
Issue: If one or more modules are shaded, the current that these modules can generate is reduced. Since the remaining modules are connected in series, they can also only carry this reduced current.
The system generates less energy
Solution: Your BRC optimizer adjusts the current of the shaded modules to match that of the others. You will regain maximum yield.
Recommendation: You can either equip all modules in the affected string (full optimization) or only the potentially shaded modules (partial optimization) with a BRC.
2. Different Orientation
Issue: Solar panels with different orientations in the same string receive varying amounts of sunlight throughout the day and produce differing amounts of electricity. When modules with different orientations are connected in series, the current of your system is determined by the weakest part of the system with the lowest sunlight exposure.
Your system generates less energy
Solution: Your BRC optimizer adjusts the current of the weaker modules to match that of the stronger modules, ensuring you achieve maximum yield.
Recommendation: Equip all modules in the affected string of your solar installation with a BRC optimizer (full optimization).
3. Different Module Tilt or Inclination
Issue: Solar panels with different tilt angles in the same string receive varying amounts of sunlight throughout the day and produce differing amounts of electricity. When modules with different tilt angles are connected in series, the current of your system is determined by the weakest part of the system with the lowest sunlight exposure.
Your system generates less energy
Solution: Your BRC optimizer adjusts the current of the weaker modules to match that of the stronger modules, ensuring you achieve maximum yield.
Recommendation: Equip all modules in the affected string of your solar installation with a BRC optimizer (full optimization).
In addition, the BRC Power Optimizer can be combined with all common inverters!
YOUR ADVANTAGES
Simply uncomplicated
More roof space
The BRC Power Optimizer solves the problem of shading, different orientation and different module inclination. This makes more roof surfaces suitable for a PV system!
Maximum flexibility
The Power Optimizer offers tradesmen maximum flexibility, as it only needs to be connected to shaded modules and the planning effort for a photovoltaic system is reduced.
Plug & Play
Connect, done. Our Power Optimizer is not only the easiest to install, but also immediately active when connected to the module.
Long-life electronics
Our Power Optimizer has long-life electronics due to the new GaN technology, which is particularly gentle to the electronics and thus enables an above-average service life.
True stand-by function
Our stand-by function, which enables our optimizers to switch off when there is sufficient sunlight, minimizes energy loss and also protects the electronics.
Simplest installation
Installation is carried out without any special tools, software, training, apps, etc.
Maximum yield
Costs are minimised for craftsmen and end users. Craftsmen can design and build a system without high planning costs. End consumers can achieve the maximum energy yield.
System independence
Since our Power Optimizer is inverter-independent, it can always be used on any shaded installation flexibly without being limited to a specific system.
Warranty
Due to our long-life electronics, we grant a 25-year warranty.

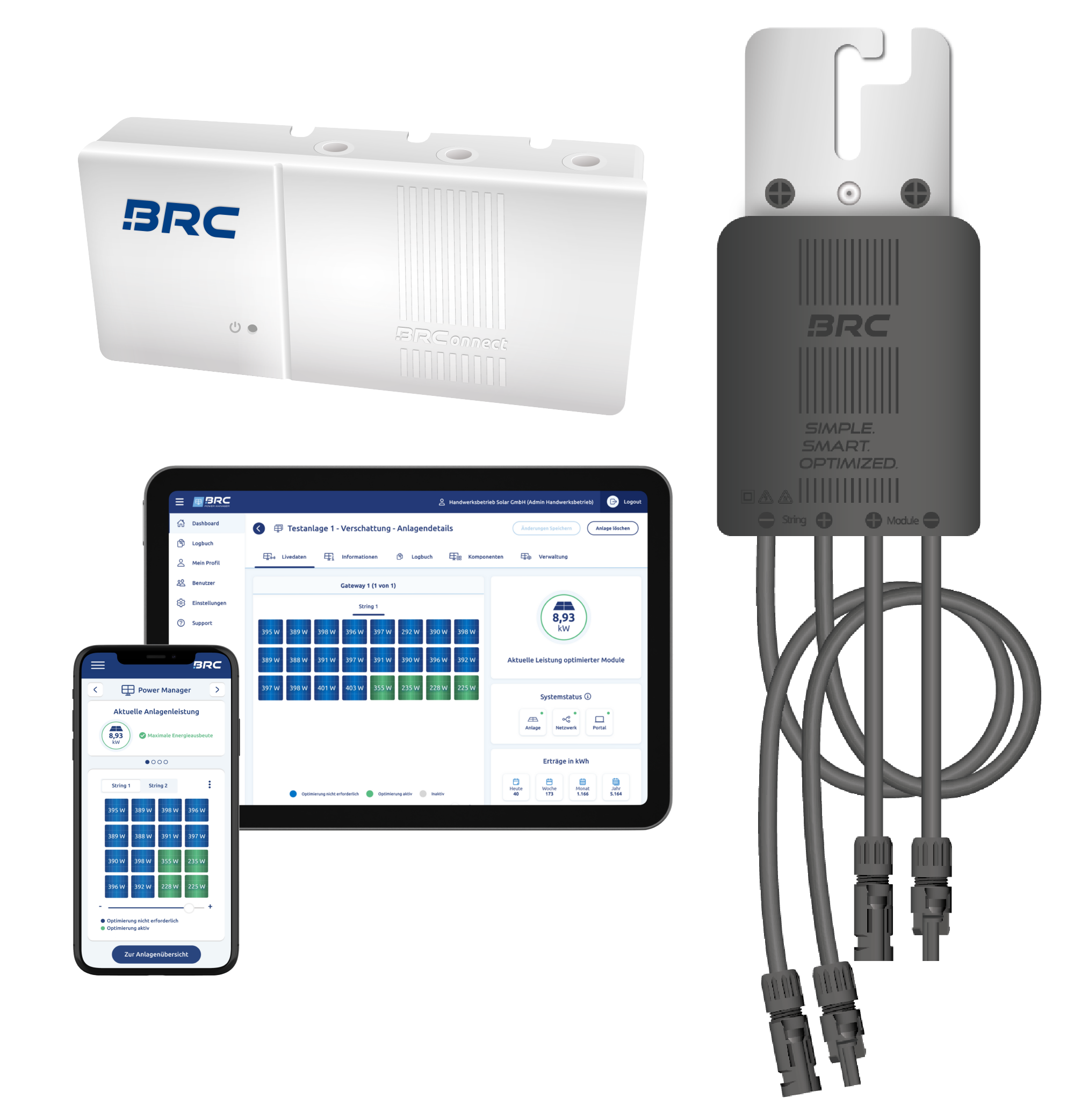

More about the Power Optimizer

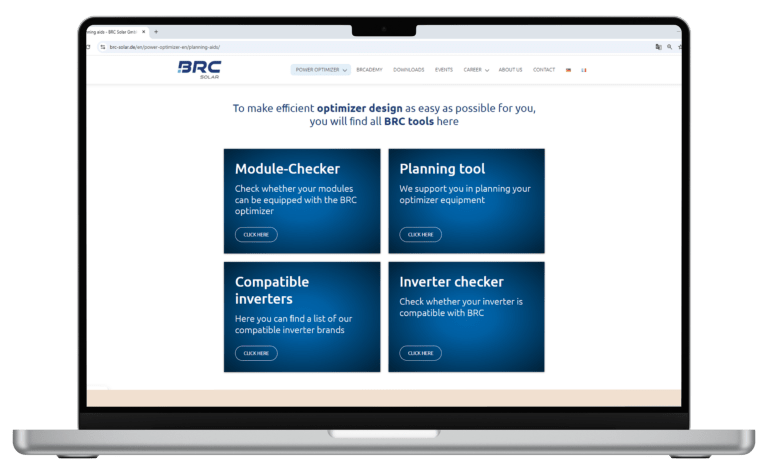

BRC Compatibility Checker
Check whether your modules can be equipped with the Power Optimizer.
Compatibility
Compatible with all common inverters
Our Power Optimizer has been successfully tested for compatibility with all common inverters. We will continue to carry out tests in order to be able to permanently assure inverter independence.
A current list containing all inverter brands that we have successfully tested in the field can be found here.

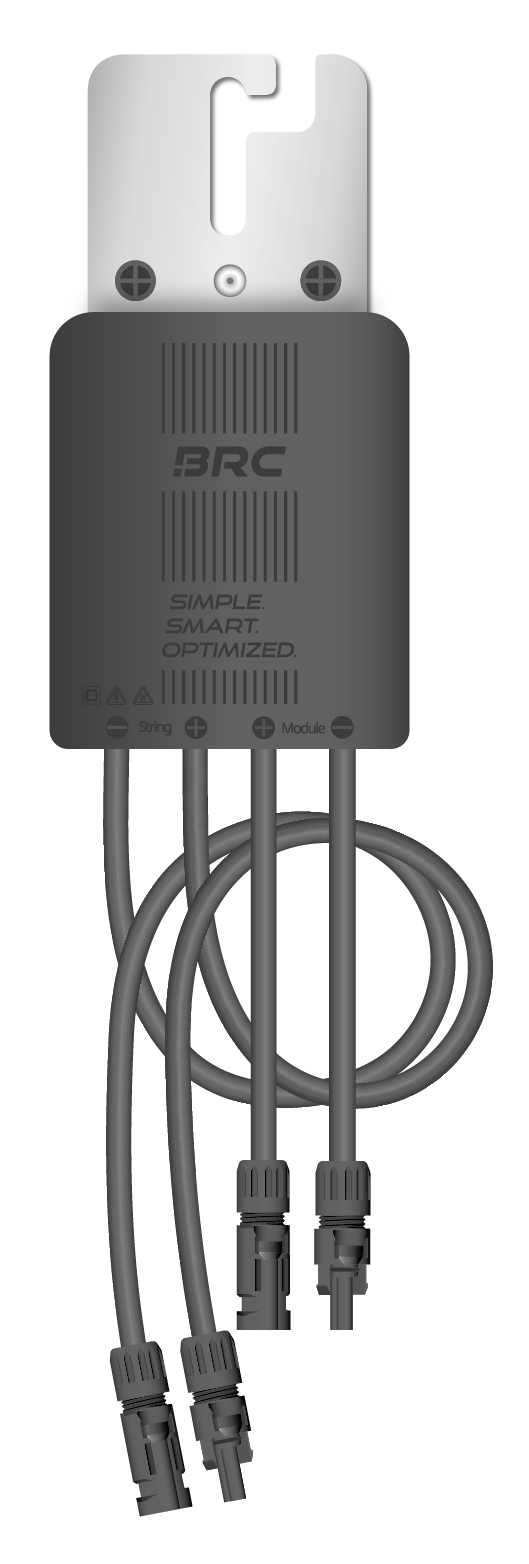

Buy Power Optimizer
The Power Optimizer is available here
As a craftsman, we offer you the opportunity to place orders directly for our Power Optimizer. Simplify your procurement and maximise the performance of your equipment.
In the following, the functionality of the BRC Power Optimiser is illustrated using a shading situation:
Modern systems have the option of disconnecting the partially shaded module from the power circuit so that the other modules are not weakened. However, this creates the problem of hot spots, which can damage or destroy the modules.
With the help of the BRC Power Optimizer, hot spots are eliminated and, in addition, the remaining energy of the partially shaded module is harvested despite shading, allowing us to harness the maximum energy yield of the system.
Looking at the electrotechnical situation at optimal lighting conditions, it can be seen that one module in the example can produce 400W. There is a voltage of 40V at each module and a current of 10A in the entire system.
However, if shading affects the module, the power drops accordingly. In our example (see below), the shading is 50%, so the current drops to 5A. As the current decreases, the power also decreases:
P (power) = U (voltage) * I (current)
Because all modules are connected in series in a string, the current at all modules is now only 5A. The reason for this is the behaviour of the current in a series connection:
| total = |1=|2=…
The formula shows that the electrical current is the same at every point in the circuit, i.e. the current is determined by the weakest module. In this case, Itotal is therefore 5A.
Modern inverters can circumvent this problem by activating the bypass diodes inside the modules. These bypass diodes disconnect the problematic module from the string by acting as a “bypass” for the current. The current of the string is then conducted via the diode itself and not via the module. However, the problem arises here that the uncoupled module continues to produce current. Since the energy can no longer be fed into the system, it is released in heat and causes so-called hot spots. These hot spots can damage or even destroy the module.
Using the BRC Power Optimizer prevents all these problems.
The Power Optimizer is connected in parallel to the module. In case of shading, it is automatically activated by the inverter. Our technology makes it possible to change the relationship between voltage and current at the module. The voltage is summed up in a series connection, but the current is the same everywhere. Since we have a deficit in current in the example, the electrical current of all other modules in the string is attenuated. To prevent this, the interconnected BRC Power Optimizer converts modules voltage and current into a different voltage and current based on the inverters demanded string current.
In the example, it would make 5A and 40V ⟶ 10A and 20V. The result is that the total current everywhere in the string is now 10A again and each module can provide 10A. Although the voltage at the partially shaded module has become lower, this does not affect the voltage of the other modules.
| total = |1=|2=…
U total = U1+U2+…
The energy yield is maximized. The problem of hot spots is also solved, as all the energy flows into the system with the help of our Power Optimizer and is not lost in heat energy.
With our innovative solutions, we offer an important building block for the photovoltaic industry worldwide.
